Classify data based on descriptor value ranges

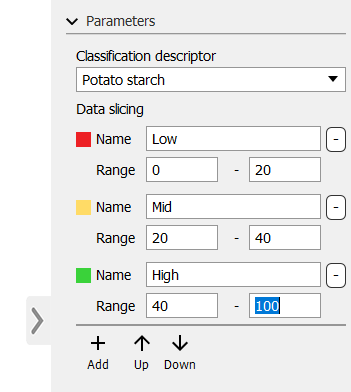

Parameters
Classifier descriptor
Which descriptor to apply slicing to.
Data slicing
Define any number of classes, each with a name and the range of values that should belong to the class. Values outside specified ranges will have NO_CLASS value.
A range’s start is inclusive, and the end is exclusive [start, end). For example, the range 0-20 will include the value 0 but not 20.
Use the buttons to add and remove ranges, and to re-order them.

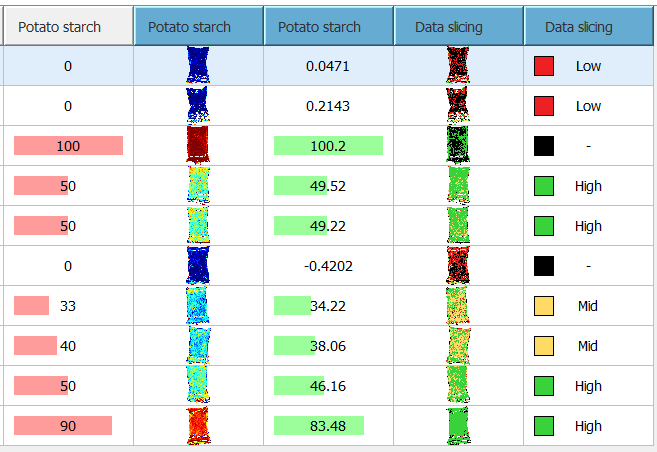

Example
Using Quantification of powder samples demo data and quantification model.
