LucidControl Sample Mover

Hard I/O conveyor belt controller.

Read more at: https://www.lucid-control.com/product/lucidcontrol-ao4-4-channel-analog-output-usb-module/ and https://www.lucid-control.com/product/lucidcontrol-do4-4-channel-digital-output-usb-module/

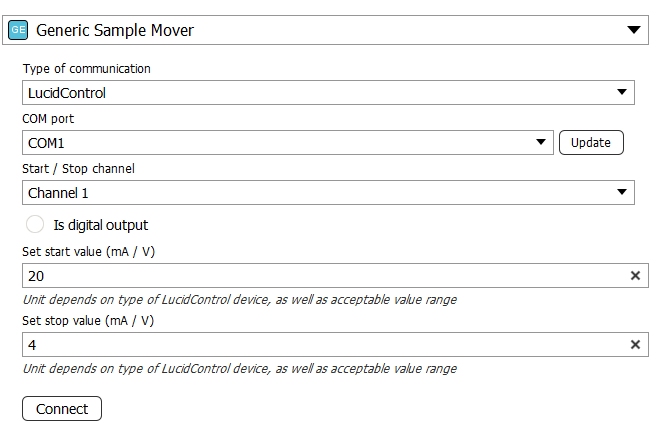

Parameters

COM Port

The COM port which the LucidControl USB device is connected to.

Start / Stop channel

Which analog output channel to send start / stop current or voltage.

Is digital output

✅ If the device is USB Digital Output Module

⬜ If the device is USB Analog Output Module

Start value

Only applicable for Analog Output Module

The value set when the conveyor is signaled to start. Can be a float value.

Depending on which LucidControl AO device is used the values should be noted in mA or V.

For example 20 for LCTR-AO4-20M0 with output range 0 ~ 20mA the start value will be 20mA.

Stop value

Only applicable for Analog Output Module

The value set when the conveyor is signaled to stop. Can be a float value.

Depending on which LucidControl AO device is used the values should be noted in mA or V.

For example 0 for LCTR-AO4-20M0 with output range 0 ~ 20mA the stop value will be 0mA.

The values have 12-bit resolution and reported accuracy of 0.25%.

Follow this article for additional information on device configuration: Hardware and settings guide
