Segment Anything

RGB segmentation using pretrained instance segmentation models.

A model will be downloaded when the Analyse Tree is applied for the first time when using a zero-shot model. If the model can not be automatically downloaded for some reason, please see this article for help: Manually download SAM model files

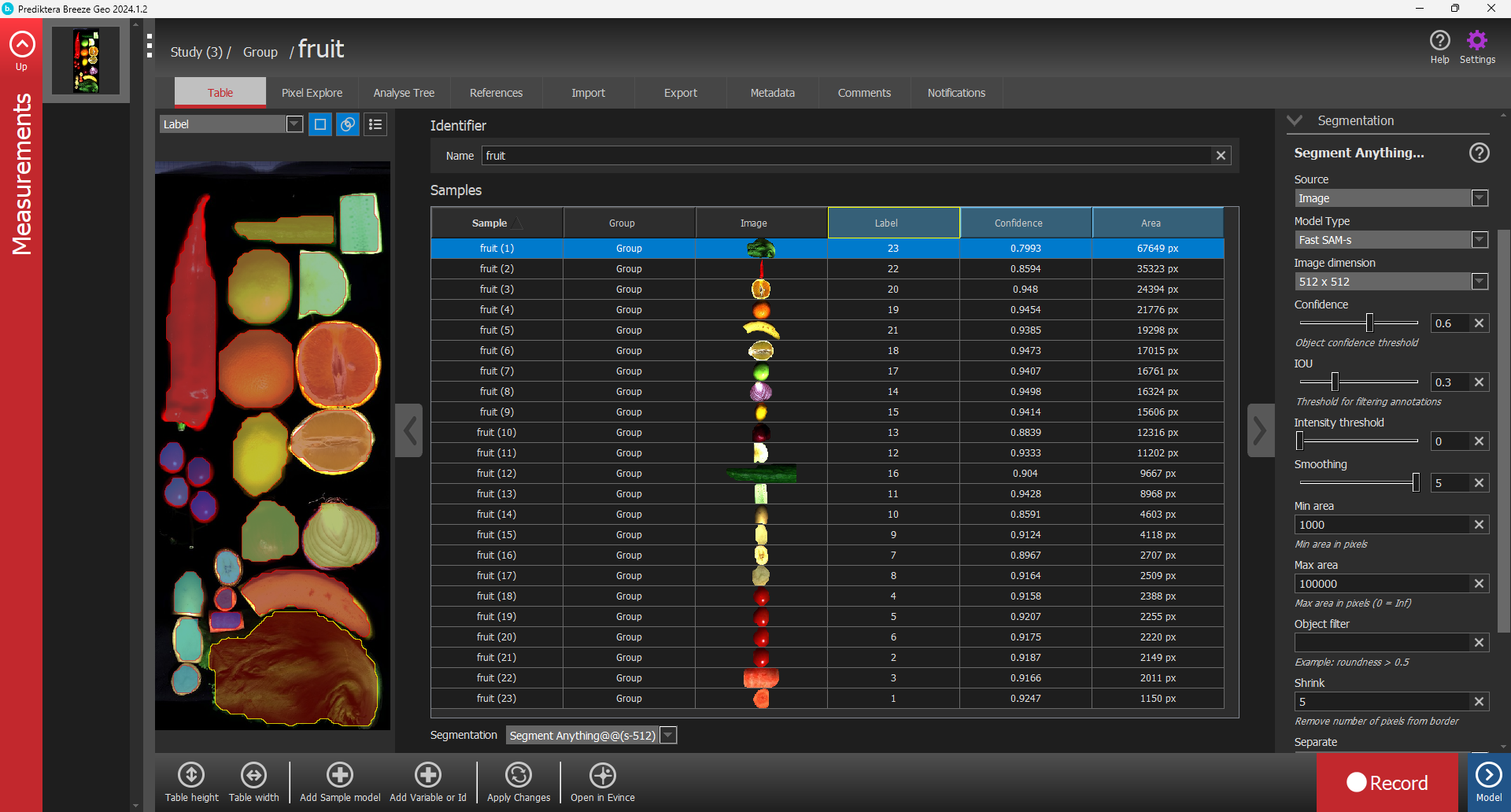

Example of Segment Anything in Breeze

Parameters

Source

On which image source the segmentation should be applied. The pseudo-rgb image or a painted prediction image.

Model Type

Type of model with different sizes.

  • FastSAM-s

  • FastSAM-x

  • YOLOv8

  • YOLO11

Image dimension

Only available for FastSAM (zero-shot models)

Model image input size.

Use a size which is close to the expected spatial resolution of the source image

File

Only available for custom trained models (YOLOv8 and YOLO11)

The .onnx model file to use.

Confidence

Object confidence threshold.

IOU

The Intersection-over-Union (IOU) parameter measures overlap between predicted and true segments, optimizing and evaluating segmentation accuracy.

Intensity threshold

The intensity threshold parameter, ranging from 0 to 1, determines which parts of an image are kept based on intensity. Values below this threshold are discarded, simplifying the image by focusing on higher intensity areas.

Activation function for scores

Activation function to apply to detection scores before thresholding.

  • None

    • Uses raw model outputs without applying any function.

  • Sigmoid

    • Squashes values into the range [0, 1], emphasizing probabilities.

  • Tahn

    • Maps values into [−1, 1], useful for centered or symmetric outputs.

  • ReLU

    • Zeroes out negatives while keeping positive values unchanged.

Smoothing

The smoothing parameter controls the amount of blur applied to an image to soften edges and reduce noise, with higher values increasing the blur effect.

Min area

The minimum number of pixels for an object to be included.

Max area

The maximum number of pixels for an object to be included.

If 0 no maximum area is defined.

Object filter

Use an expression to further exclude unwanted objects based on shape.

Operators than can be used expressions include the data operators wNNN and bMMM for referring to wavelength bands, the range operator : used for averaging data, standard arithmetic (+,-,/,* …) and comparison operators (=,>,< …) as well as some mathematical functions ( …) and constants ( ).

Breeze does not validate the provided expression until you click Apply changes to apply it to some data.

Data Operator

Description

wNNN

Wavelength lookup operator that finds the wavelength band closest to the provided number NNN. This means NNN need not match exactly to find data.

A setting controls how far off a wavelength is allowed to be to be considered a match. If there isn’t matching data an error is displayed when applying the workflow to data. Learn more in Wavelength matching.

Example of this syntax: w700 or w1714.

bMMM

Band index operator. MMM represent the one-based index of a wavelength band. For example b1 is the first band, and b20 is the twentieth.

If the index MMM does not exist, Breeze displays an error message.

:

Average range operator that returns the average value for a range of wavelength bands.

For example: w1200:w1500 yields average value of all data points between wavelength 1200 nm and 1500 nm. b1:b2 yields average values of the first two bands.
Expand to see all available operators

Arithmetic Operator

Description

-

Subtract

+

Add

/

Divide

*

Multiply

%

Modulo

^

Raised to a power

Comparison Operator

Description

=

Equal to

|

OR

TRUE if any of the conditions separated by OR is TRUE

&

AND

TRUE if all the conditions separated by AND is TRUE

!=

<>

Not equal to

<

Less than

<=

Less than or equal to

>

Greater than

>=

Greater than or equal to

Function operator

Description

SQRT(N)

SIN(N)

COS(N)

EXP(N)

LOG(N)

LOG10(N)

AVG(N)

ROUND(N)

Constants

Description

TRUE

Always evaluates to TRUE

FALSE

Always evaluates to FALSE

INF

token value

PI

approximated to

Properties that can be used for the Expression:

  • Area

  • Length

  • Width

  • Circumference

  • Regularity

  • Roundness

  • Angle

  • D1

  • D2

  • X

  • Y

  • MaxBorderDistance

  • BoundingBoxArea

For details on each available property see: Object properties Details

Shrink

Takes away x numbers of pixels at the borders of the objects included in images.

Separate

  • Normal

    • Can have both separated and combined objects.

  • Separate adjacent objects

    • All objects are defined separately.

  • Merge all objects into one

    • All objects are defined as one.

  • Merge all objects per row

    • All objects per row segmentation are defined as one.

  • Merge all objects per column

    • All objects per column segmentation are defined as one.

Max objects

Max number of objects in image, takes the first objects sorted by confidence.

Inverse

✅ Includes the opposite of the sample specified in the model.

⬜ Includes the sample specified from the model.
