Project options

Project options are settings that can be different for each project.

Also learn about Workspace Settingswhich are global for the whole workspace.

Project Options

When you have a project open in Breeze you can access its project options, using the Options button on the left toolbar of the screen. Project options are project specific and not shared with other projects in the same workspace, unlike the Workspace settings

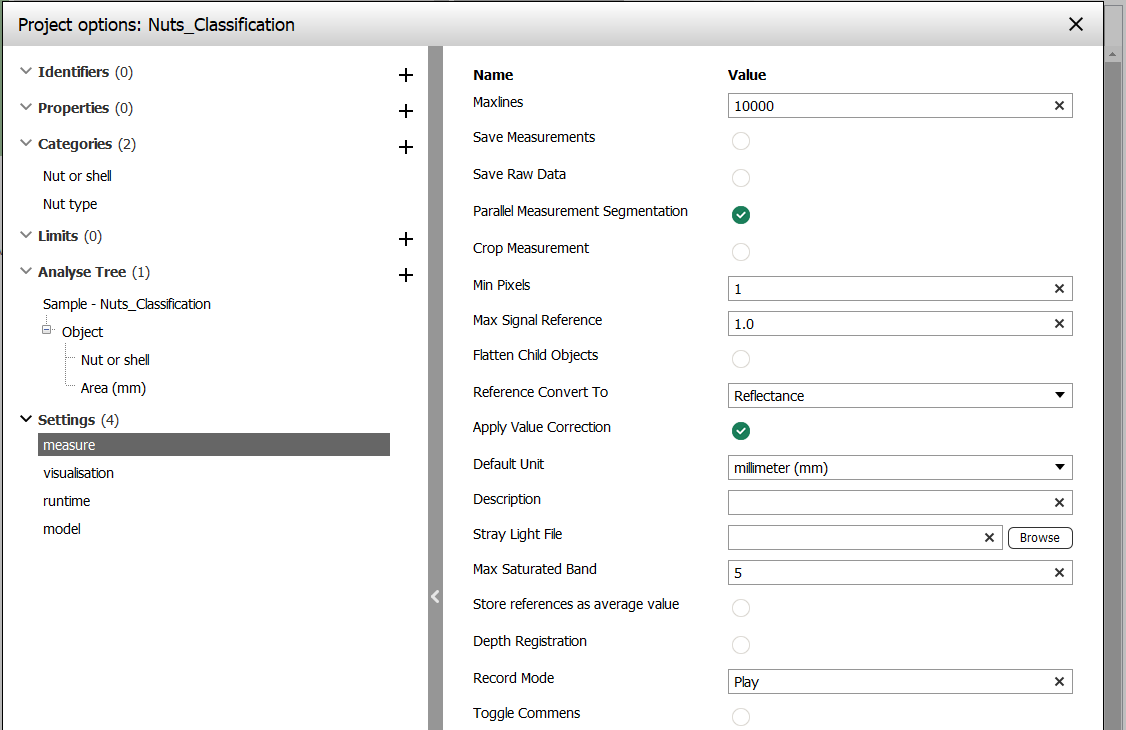

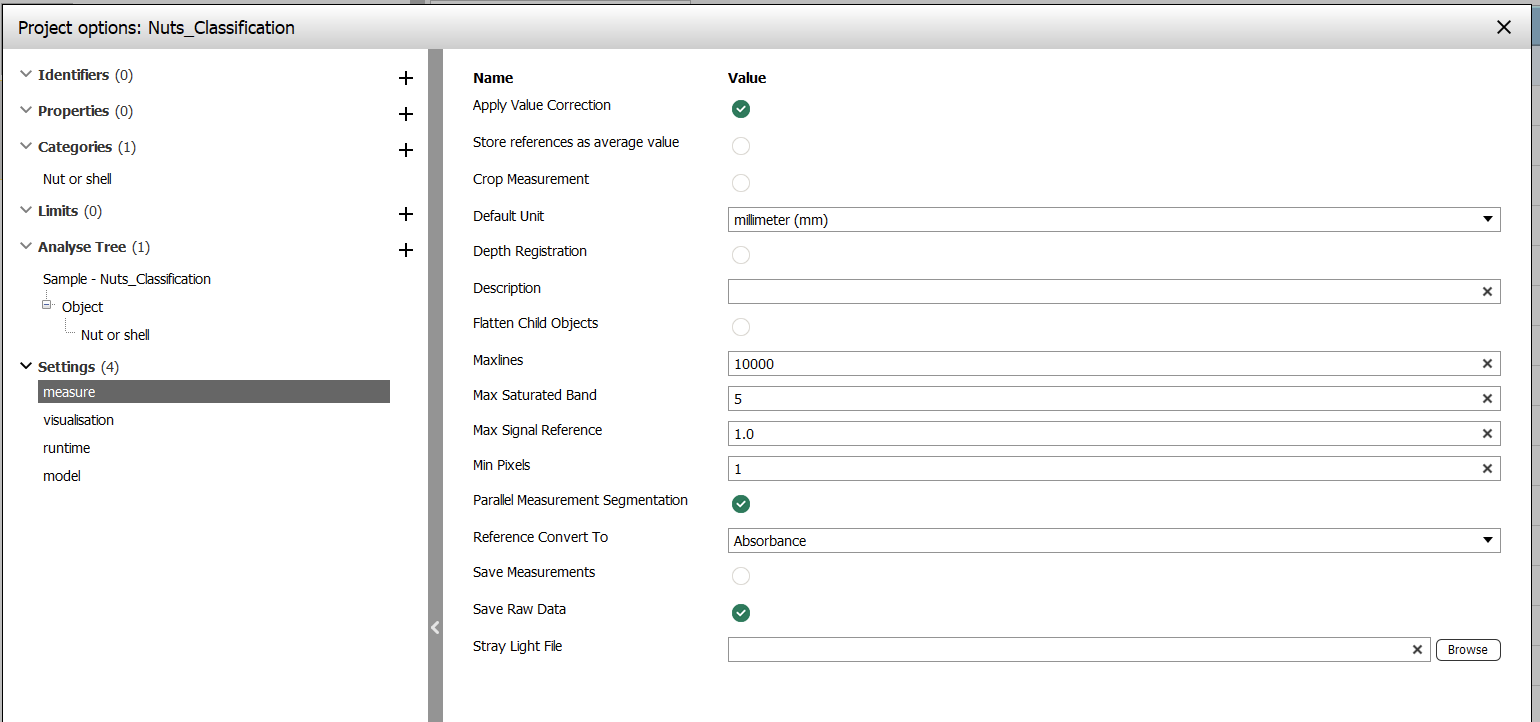

The Project options panel contents varies a bit depending on the project, but here is an example:

The top level groups of project options are:

• Identifiers,

• Properties,

• Categories, to specify visualization color and names of classification classes

• Limits,

• Analyse Tree, contains the same settings as displayed graphically in the Analyse Tree tab in Breeze. The settings should not be changed in Project options.

• Settings, contains four sub categories;

  • measure - settings for how measurements are recorded. The maxlinessetting determines the maximum size of recorded measurements. Overflowing lines are saved in additional measurements.

  • visualization - color scale and settings for histograms

  • runtime - the prediction mode and segmentation used when a workflow is exported to Runtime. Learn more about these options and the process to use Runtime workflows inIntroduction to Breeze Runtime development.

  • model -
