The Metadata tab is used to show measurement metadata such as file size, dimensions, camera field of view, camera max signal, white and dark reference and more.
Some data related to the camera is editable using the button at the bottom of the page.
Edit metadata

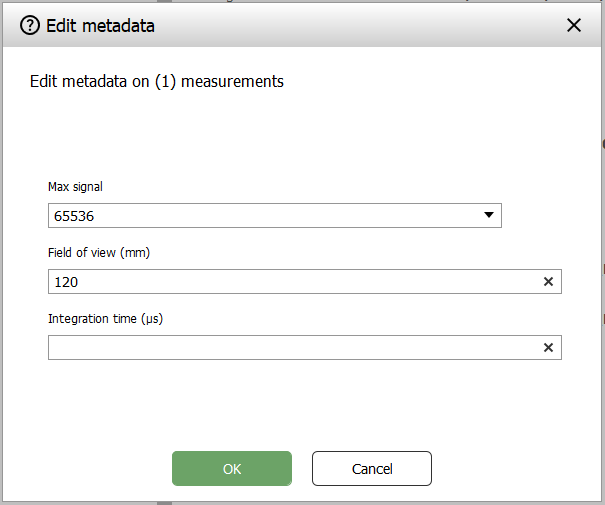

Editing metadata can be done by selecting one or more measurements in a group and pressing the Edit metadata button in the lower part of the window. To select multiple measurements hold Ctrl while selecting measurements. A dialog is displayed with the editable fields Max signal, Field of view and Integration time .
Import band names
This is used to import wavelength information for a measurement. If a measurement is imported with missing wavelength information in the .hdr file, the measurement is imported but might display wrong wavelengths in Pixel explore and Spectral viewer. Import band names is used to import that information from an Envi header file and can be done for multiple selected measurements. To select multiple measurements hold Ctrl while selecting measurements. A valid header file might look something like this:
ENVI
description = { null
origfile = E:\Prediktera\Breeze\Record\Nuts_Classification\Test\Mix\measurement.raw }
file type = ENVI
date = 20260212102639
interleave = BIL
samples = 384
lines = 1060
bands = 31
default bands = {7, 14, 21}
header offset = 0
data type = 12
byte order = 0
x start = 0
y start = 0
errors = {none}
Wavelength = {
1164.52,
1209.84,
1255.04,
1300.16,
1345.2,
1390.17,
1435.09,
1479.97,
1524.81,
1569.64,
1614.45,
1659.25,
1704.05,
1748.85,
1793.66,
1838.47,
1883.3,
1928.12,
1972.95,
2017.79,
2062.62,
2107.45,
2152.26,
2197.05,
2241.81,
2286.53,
2331.2,
2375.81,
2420.34,
2464.78,
2509.12
}
Copy to clipboard
Copy to clipboard copies the displayed Meta data information into the system clipboard to be able to easily paste that information elsewhere. The following text is an example of copied metadata.
Measurement
Converted to Reflectance
Created by Administrator
Created date 2017-10-12 11:03:18
File size 24.1 MB
Measurement Id f696c2bf
Modified date 2026-02-12 10:26:40
Original file E:\Prediktera\Breeze\Record\Nuts_Classification\Test\Mix\measurement.raw
Dimension
Frames 1060 frames
Length 331 mm
Pixels per line 384 pixels
Resolution 0.3125 mm/pixels
Spectral bands 31 bands (1164.5 - 2509.1 nm)
Camera
Field of view 120 mm
Max Signal 65536
White reference
Original file E:\Prediktera\Breeze\Record\Nuts_Classification\Test\Mix\whiteref_measurement.raw
Dark reference
Original file E:\Prediktera\Breeze\Record\Nuts_Classification\Test\Mix\darkref_measurement.raw
