Ternary RGB

Combine three classifications to single rgb image.

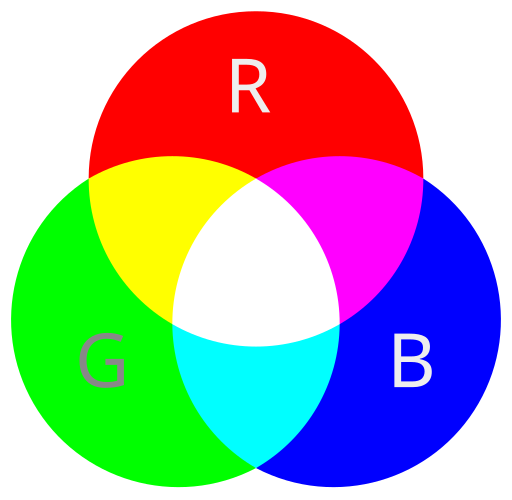

The output of this descriptor is a color depending on the classification of the selected descriptors parameters and a combination of them.

  • Red only → Red

  • Green only → Green

  • Blue only → Blue

  • Red + Green → Yellow

  • Red + Blue → Magenta

  • Green + Blue → Cyan

  • Red + Green + Blue → White

  • No match (all off) → Black


Parameters

Classification descriptor R

Select descriptor for Red class.

Red

The class to use for red.

Classification descriptor G

Select descriptor for Green class.

Green

The class to use for green.

Classification descriptor B

Select descriptor for Blue class.

Blue

The class to use for blue.
